Quick Details

  • Condition: New
  • Type: Cold Rolling Mill
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: ZHANG YUN
  • Model Number: metal roofing roll forming machine
  • Voltage: 380V
  • Power(W): 30KW
  • Dimension(L*W*H): uncertain
  • Weight: uncertain
  • Certification: ISO9001
  • Warranty: One Year, one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: customized
  • Technical support: Yes
  • Moq: 1 set metal roofing roll forming machine
  • certification: ISO9001
  • Design: as you wish
  • Factory location: 2 hours away from shanghai
  • Product name: metal roofing roll forming machine
  • OEM: Yes
  • Catalog: catalog is free and if need express for u need freight collect

Packaging & Delivery

Packaging Details wooden case or container for New aluminum automatic operating full automatic cold roll forming machine
Delivery Time within 60--90days after receiving deposit

metal roofing roll forming machine

Just cooperated with one India factory project, we arranged engineer for installation instruct and got clients vigorously commended. Enclosed is photo with clients and inspection reports about machine.













New aluminum automatic operating full automatic cold roll forming machine





Related Product

Click Photo to see more different option!



Product Description

Equipment overview:

The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures stability of the machine. All the bearings on the top & bottom shafts are lubricated. 2.Module torii is installed on NMT, adjust the distance through rotation leader screw.



Technical parameters:

Serial numberItemUnitParameters
1Suitable materialType Q300 cold-rolled steel plate,galvanized plate,color-paint plate , stainless steel plate
strengthMPa
Thicknessmm1—2.5mm
Coil internal diametermm400mm
Coil weightT10
2Specificationmm280--680
3Line speedm/min40
4Roller material D2 quenching treatment
5Roller driven type External chain transmission
6Operating system Windows2000
7Total motor powerKw21.5
8Electric control system PLC automatic control system
9Dimension(L*W*H)m11X1.3X1

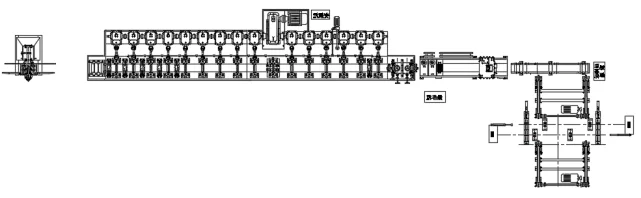

The layout of the production line
Decoiler—Leveling—Forming machine—Cutting off—Punching—Feeding frame

The Available Type of Cold Roll Forming Machine

 Model

Sheet thickness (mm)

Sheet  width

(mm)

Speed

(m/min)

Cutting length

 (m)

Recommended

 lane number

Total machine power

(kw)

GY130

0.3~1.5

50~230

5~20

2~6

8~13

10~30

GY140

0.5~2

220~270

5~20

2~6

10~20

15~40

GY150

0.5~2

220~270

5~20

2~6

10~20

15~40

GY160

0.5~2.5

220~300

5~20

2~6

10~32

22~65

GY180

1~3

250~400

5~15

2~6

13~25

30~65

GY190

1~3.5

250~400

5~15

2~6

13~25

50~90

GY200

2~5

250~500

5~15

2~6

10~18

50~90

GY230

2~6

250~500

5~15

2~6

10~18

50~90

GY250

2~6

250~500

5~15

2~6

10~18

60~100

GY280

2~8

200~550

5~15

2~6

10~18

75~120

GY300

2~8

300~600

5~15

2~6

10~16

100~200

GY350

3~10

300~700

5~12

4~6

10~16

150~250



These are applied to lightgage steel joist,electrical cabinet upright column,door frame,Carriage side plate,cable bridge,highway guardrail plate,automotive frame,etc.
