Hot Sale Products Elevator Guide Rail Cold Roll Forming Machine for Lifts

  • 1 - 2 Sets
  • 3 - 4 Sets
  • >=5 Sets
Model Number:
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 30 45 60 Negotiable
Graphic customization (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Customized logo (Min. Order: 1 Sets) Less
Report Suspicious Activity
Quick Details
2 years
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Place of Origin:
Brand Name:
Cold Rolling Mill
150 KW
Applicable Industries:
Manufacturing Plant
Product name:
elevator guide rail cold roll forming machine
1 set roll forming equipment
Technical support:
Factory location:
2 hours away from shanghai
catalog is free and if need express for u need freight collect
Supply Ability
Supply Ability:
15 Set/Sets per Month guide rail making roll forming machine
Packaging & Delivery
Packaging Details
Container or wooden case for guide rail making roll forming machine.
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 30 45 60 To be negotiated
Video Description

Hot Sale Products Elevator Guide Rail Cold Roll Forming Machine for Lifts


 Elevator guide rail roll forming machine is designed to produce various types of elevator guide rail. The elevator guide rail production line has the characteristics of high accuracy and straightness, and our machines can produce different elevator guide rails according to customers’ drawings.




Product Description

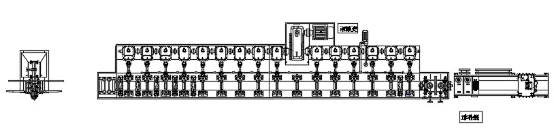

The layout of the production line

Decoiler—Leveling—Forming machine—Cutting off—Feeding frame



Device Configuration & Technical Parameters
1.Manual Decoiler: one set
   1)inner diameter: Φ500-700mm (or specified by the customer)
   2)Max. loading of the spindle: 3T
   3)width of the rolled material: 400mm
   4)Outer diameter of the rolled material: 2500mm
2.Forming Machine (15 lanes): one set
   1)Including: allocation gearbox, model 180 frame(thickening), roller shaft, forming die set, automatic coating oil equipment for sheet, correction head, etc.
   2)frame: 680mm height, 300mm width, HT200 material
   3)fore-and-aft clearance of the frame: 660mm
   4)vertical roll holder: 5 sets
   5)allocation gearbox with 8 cambered bevel gear, 5 the upper and lower drive gears, steel tempering cabinet (thickening), 165mm center distance; the first two and last three lanes are upper and lower driving, others are lower driving only.
   6)roll mandrel: Φ80mm, 300mm effective expanding width, 40Cr material, the max. thickness of roll bending Q235 plate is 3.5mm
3.Main Motor: 55kw Tri-phase AC variable frequency speed regulation motor with one set of 650 reducer, intermediate drive.
4.Hydraulic Track Type up-and-down Cutting Machine: one set. (No glitches tracking automatic cutting machine with a hydraulic station)
5.Drum-type Sizing Receiving Station( 6 meters long): one set, sizing length could adjust according to customer's requirements.
6.Three-dimensional Correction Head: one set (correction mode included)
7.TK5A Elevator Hollow Guide Rail Forming Mold is offered( product images should be provided by customer), the material of front 9 lanes mold is GCr15 bearing steel, latter 6 lenes mold is Cr12 mold steel. Quenching surface grinding.
8.Linkage Operation Cabinet: one set
9.One Set of Automatic Coating Oil Equipment for Sheet is added before feeding hole.


               contact us  back to home




1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
